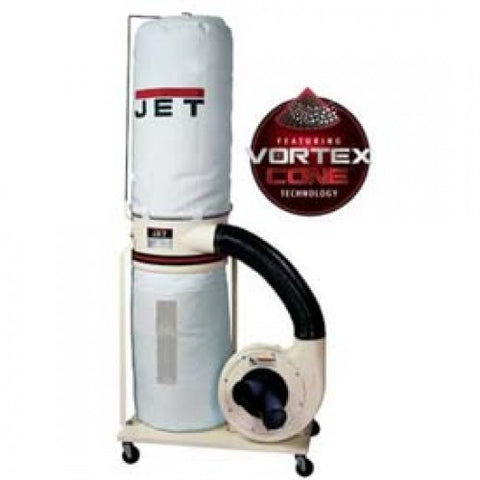

JET 710701K Model DC-1200VX-BK1 2HP 1-Phase 230V Dust Collector W/ 30-Micron Bag Filter Kit 1119451

The JET DC-1200VX features the exclusive Vortex Cone? which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

Features:

Vortex Cone improves chip separation and collector bag packing efficiency
Eliminates premature filter clogging for sustained performance
Single-stage design for economical and quiet operation
Industrial controls designed for years of trouble-free use
Quick-connect collection bags with elastic band for fast, easy installation and removal
High air velocity (CFM) design stands up to any competitive specifications
Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty

Product Specifications

VOLTAGE: 230
WARRANTY: 5-Year Warranty
TYPE: Mobile
MANUFACTURERS PART NUMBER: 710701K
DESCRIPTION: DC-1200VX-BK1 Dust Collector, 2HP 1PH 230V, 30-Micron Bag Filter Kit
MOTOR HORSEPOWER: 2
COLLECTION BAG CAPACITY (CU. FT.): 5-3/10"
COLLECTION BAG LENGTH (IN.): 29
AIR FLOW @ 4" (CFM): 1200
MODEL NUMBER: DC-1200VX-BK1
MOTOR CURRENT AMPS: 8
STYLE (TYPE): Bag
NUMBER OF AIR INLETS: (1) at 6, (2) at 4
EFFICIENCY (MICRON): 30
STATIC PRESSURE (WC): 11-1/2"
IMPELLER DIAMETER (IN.): 12
IMPELLER MATERIAL: Steel
VELOCITY @ 4" (CFM): 13745
1-HOSE CONNECTION DIAMETER (IN.): 6
2-HOSES CONNECTION DIAMETER (IN.): 4
BRAND: JET
MOTOR PHASE: 1
MOTOR VOLTAGE: 230
PREWIRED VOLTAGE: 230
SOUND RATING (DB): 80 - 85
BAG DIAMETER (IN.): 20
FILTER BAG/CANISTER LENGTH (IN.): 32
CFM: 1200
