Federal_Signal_52 024 1_Horn,_24VDC,_Resonating_1119005

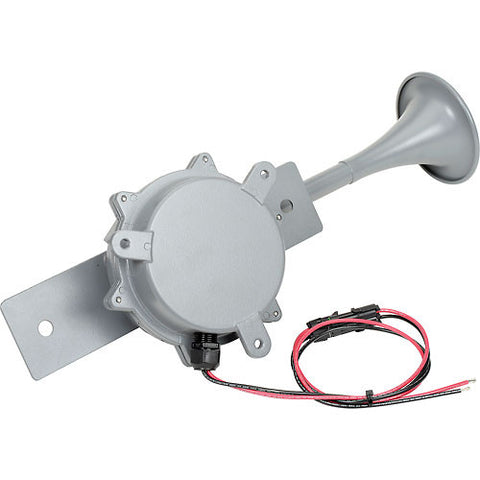

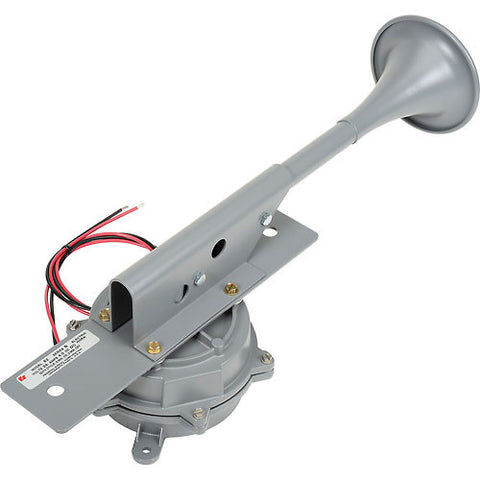

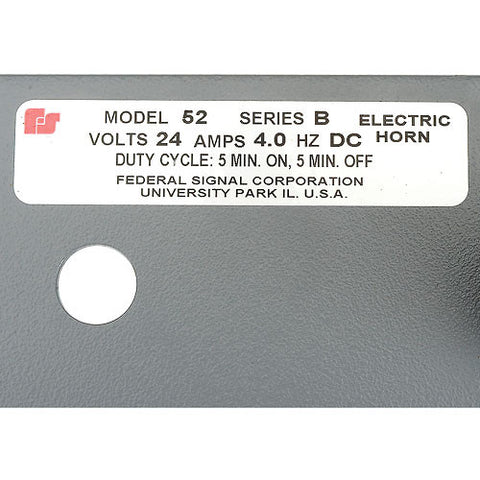

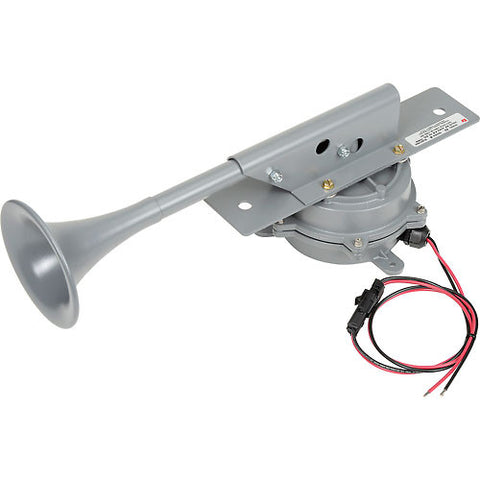

The Federal Signal Model 52 resonating horn produces 114dBa @ 10 feet (124dBa @ 1m) with a 1,000 foot range. It is capable of penetrating high ambient noise levels. Being electrically activated, the Model 52 does not require an air compressor for operation. The Model 52 is able to withstand the shocks, vibrations, dust and atmospheric conditions encountered in off road use. The operating temperature range is 40??F to 185??F ( 40??C to 85??C). Rubber gaskets and a power connector make the Model 52 completely watertight. The projector and internal parts are made of zinc coated steel or stainless steel to resist corrosion; the exterior is sealed with gray enamel paint. The housing is die cast aluminum. Tied and adhesive bonded internal wiring helps prevent electrical shorts, wire breakage, and loose connections. The Model 52 is available in 24VDC. It's 18 32V operating range allows for voltage inconsistencies. The Model 52 has a duty cycle of five minutes on and five minutes off. Federal Signal's Model 52 resonating horn is specifically designed for off road vehicles. It provides the very loud sound for which an air horn is usually required, but without the need for an expensive compressor. Used by major manufa
